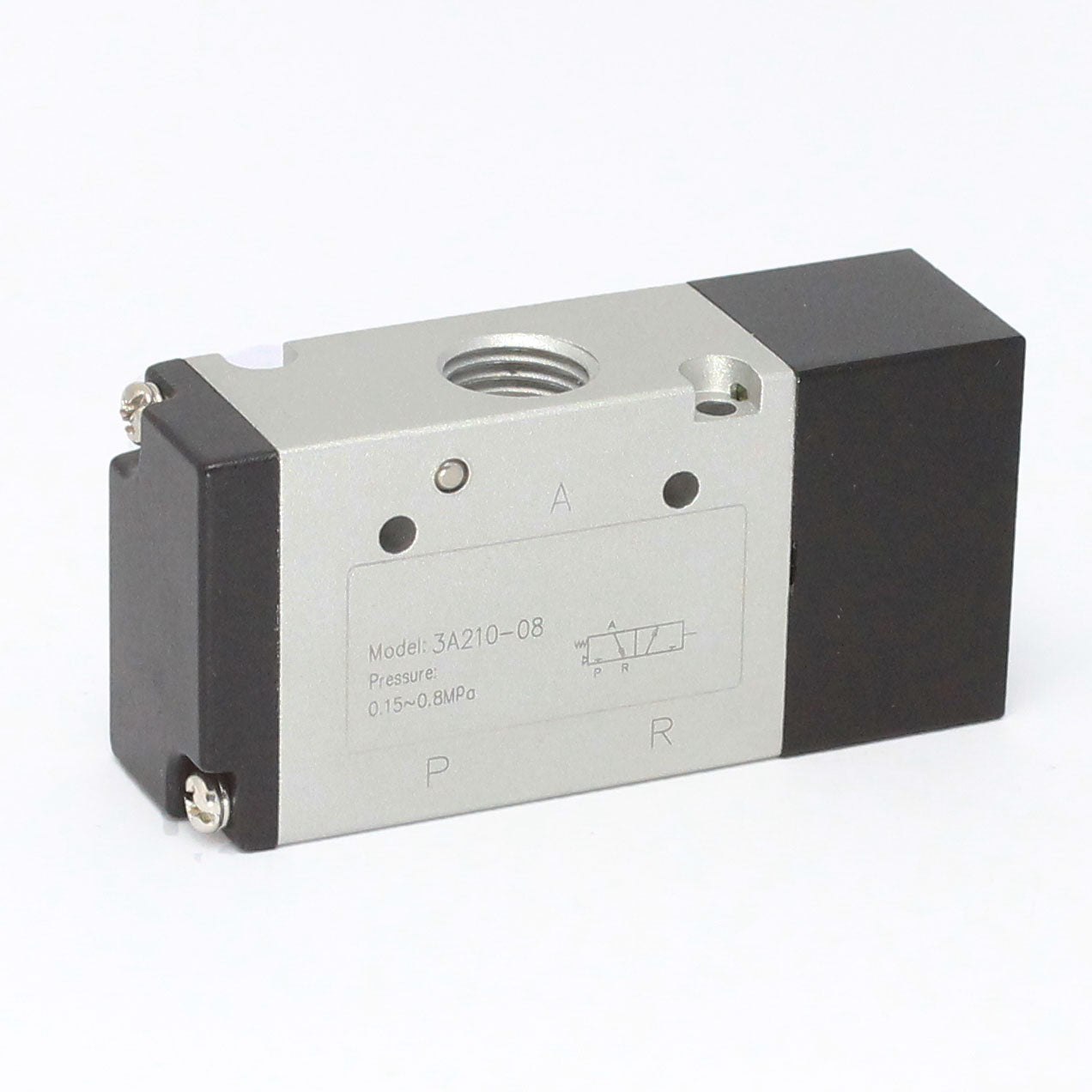

- Type: 3 Port 3 Way 2 Position Single Air Pilot Valve Normally Open
- SKU: 3A210-08NO
- Coil: N/A
- Ports: 1/4" NPT
- Exhaust: 1/8" NPT
Product Description
Flow Rate (Cv): 0.89
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Three way/Two position
Effective Section Area: 16mm² (CV=0.89)
Port Size: Air Inlet=Air Outlet= 1/4"NPT, Exhaust=1/8"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
This precision product works great with other quality MettleAir accessories.
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Three way/Two position
Effective Section Area: 16mm² (CV=0.89)
Port Size: Air Inlet=Air Outlet= 1/4"NPT, Exhaust=1/8"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
This precision product works great with other quality MettleAir accessories.
