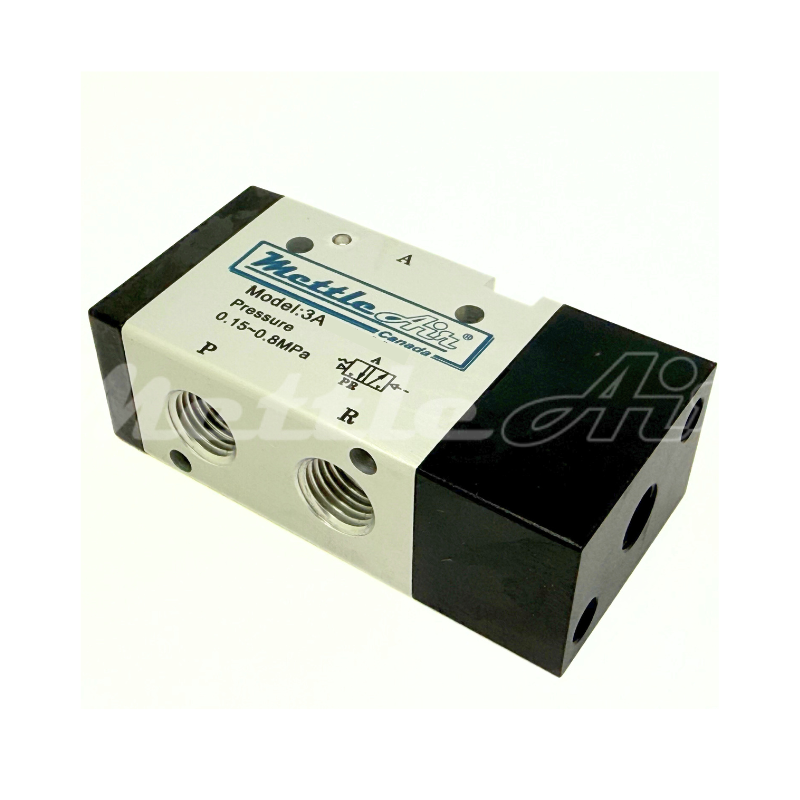

- Type: 3 Ports 3 Way 2 Position Single Air Pilot Actuated Valve
- SKU: 3A310-10
- Coil: N/A
- Ports : 3/8" NPT
- Exhaust: 1/4" NPT
Product Description
Flow Rate (Cv): 1.68
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Three way/Two position
Effective Section Area: 30mm² (CV=1.68)
Port Size: Air Inlet=Air Outlet= 3/8"NPT, Exhaust=1/4"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
This precision product works great with other quality MettleAir accessories.
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Three way/Two position
Effective Section Area: 30mm² (CV=1.68)
Port Size: Air Inlet=Air Outlet= 3/8"NPT, Exhaust=1/4"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
This precision product works great with other quality MettleAir accessories.
