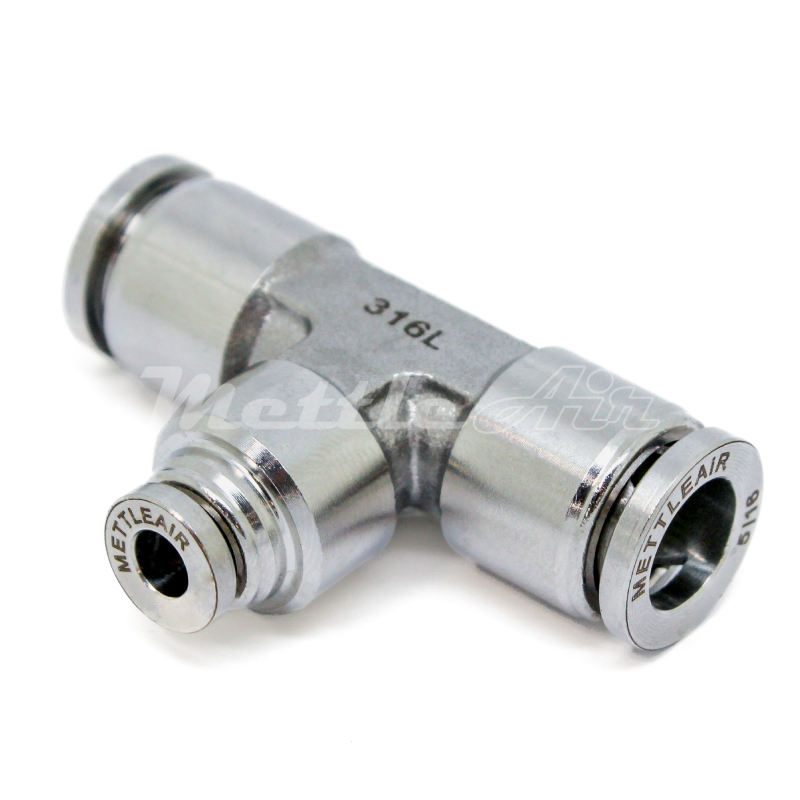

Stainless Steel 316L PTC REDUCER Tee Fitting 6 mm OD - 5/32" OD

IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

No Freeze Warning: Expansion of freezing fluid(s) inside fitting will cause fitting to fail and rupture

Description

Category: Stainless Steel Push to Connect Fittings
Type: T Union Reducer
SKU: SMTE6-5/32
Body Material: Stainless Steel 316L
Tube OD 1: 6 mm
Tube OD 2: 5/32"

Specifications

• Fluid Compatibility: Air, Water, Steam
• Operating Pressure: 0 to 215 PSI
• Working Temperature Range: -4°F to 284°F (-20°C to 140°C)
• Body Material: Stainless Steel 316L
• O-Ring & Packing Material: FKM (Viton®)
• Back Ring: Stainless Steel 316L
• Lock Claws: Stainless Steel
• Collar: Stainless Steel 316L
• Sleeve: Stainless Steel 316L

Features

• Compatible Tubing: Suitable for Polyurethane and Nylon tubing
• Quick Connections: Enables fast, secure, and leak-free connections
• Reusable Design: Allows multiple connections and disconnections without compromising performance
• Metallic Body: Constructed from Stainless Steel 316L for dependable performance
• High-Performance Seals: FKM (Viton®) seals ensure excellent resistance to heat and chemicals
