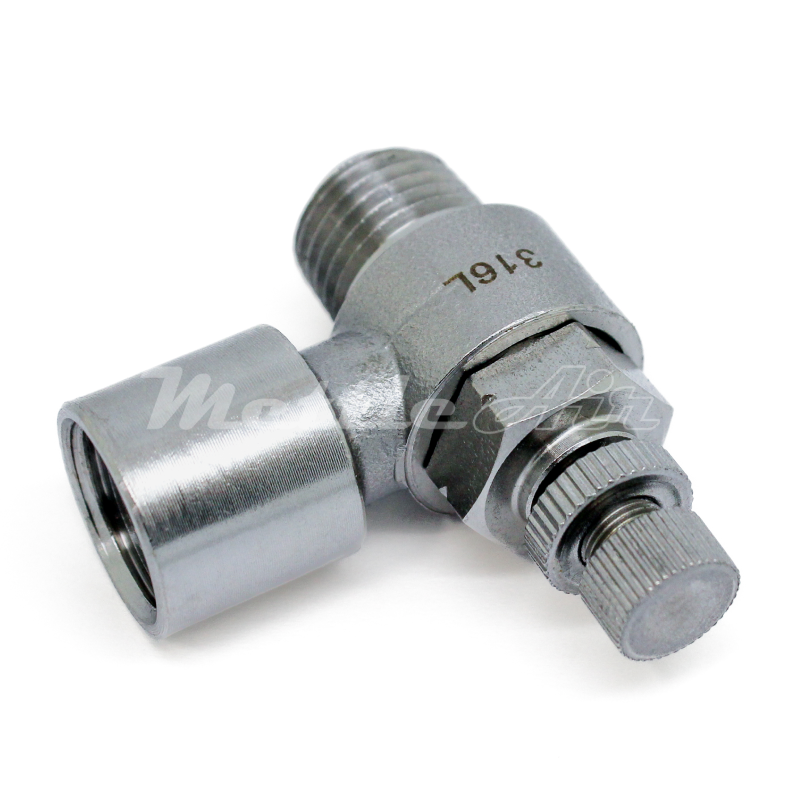

Stainless Steel 316L Elbow Speed Control Male-Female, METER OUT, 1/4"MBSPP-1/4"FBSPP

IMPORTANT NOTE:

This FLOW CONTROL is a DIRECTIONAL Valve (METER OUT). Air flow is controlled only in ONE DIRECTION - from Male threaded side to Female threaded side. In the opposite direction air flow is UNCONTROLLED.

"Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

No Freeze Warning: Expansion of freezing fluid(s) inside fitting will cause fitting to fail and rupture

Description

Category: Stainless Steel Push to Connect Fittings
Type: 90° Male-Female Elbow Speed Control
SKU: SMFSC-G02
Body Material: Stainless Steel 316L
Thread 1: 1/4" BSPP (G)
Thread 2: 1/4" BSPP (G)

Disclaimer: This valve is NOT intended and cannot be used as a shut off point / shut off valve. It is designed to control flow rate only.

Specifications

• Fluid Compatibility: Air, Water, Steam
• Operating Pressure: 0 to 215 PSI
• Working Temperature Range: -4°F to 284°F (-20°C to 140°C)
• Body Material: Stainless Steel 316L
• O-Ring & Packing Material: FKM (Viton®)
• Back Ring: Stainless Steel 316L
• Lock Claws: Stainless Steel
• Collar: Stainless Steel 316L
• Sleeve: Stainless Steel 316L

Features

• Compatible Tubing: Suitable for Polyurethane and Nylon tubing
• Quick Connections: Enables fast, secure, and leak-free connections
• Reusable Design: Allows multiple connections and disconnections without compromising performance
• Metallic Body: Constructed from Stainless Steel 316L for dependable performance
• High-Performance Seals: FKM (Viton®) seals ensure excellent resistance to heat and chemicals
