- Category: Pneumatic Push to Connect Fittings

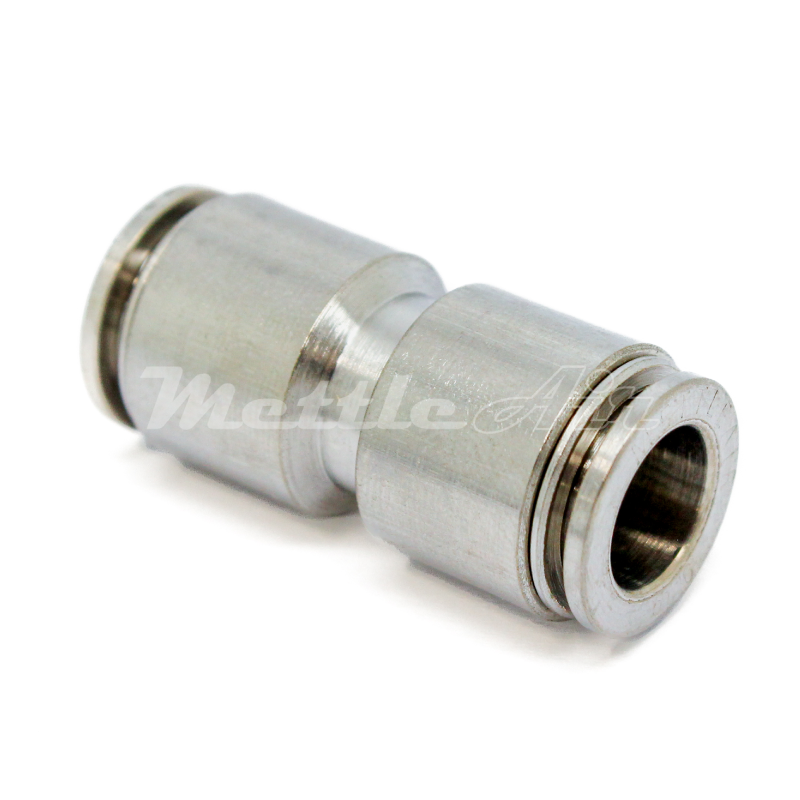

- Type: Nickel Plated Straight Union Connector Brass
- SKU: BMTU 1/4
- Tube OD: 1/4" OD
- Body Material: Nickel Plated Brass
IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.
Features
- Designed for Polyurethane or Nylon tubing
- Quick and Reliable connections
- Reusable: Multiple connections/disconnections
- Metallic body made of non-corrosive, non-contaminant Nickel Plated brass
- Pre-coated threads are ready to use without additional sealing
- Outside (and Inside where applicable) hexagonal wrench tightening
| SPECIFICATIONS | ||
| Fluid Type | AIR | |
| Operating Pressure | 0-200 PSI | |
| Working Temperature | 32° F - 140° F (0° C - 60° C) | |
| Metallic Body | Nickel Plated Brass | |
| O-Ring | NBR (Acrylonitrile butadiene rubber) | |
| Packing | NBR (Acrylonitrile butadiene rubber) | |
| Back Ring | POM (Polyoxymethylene plastic) | |
| Lock Claws | Stainless Steel | |
| Collar | Nickel Plated Brass | |
| Sleeve | Nickel Plated Brass | |
