IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

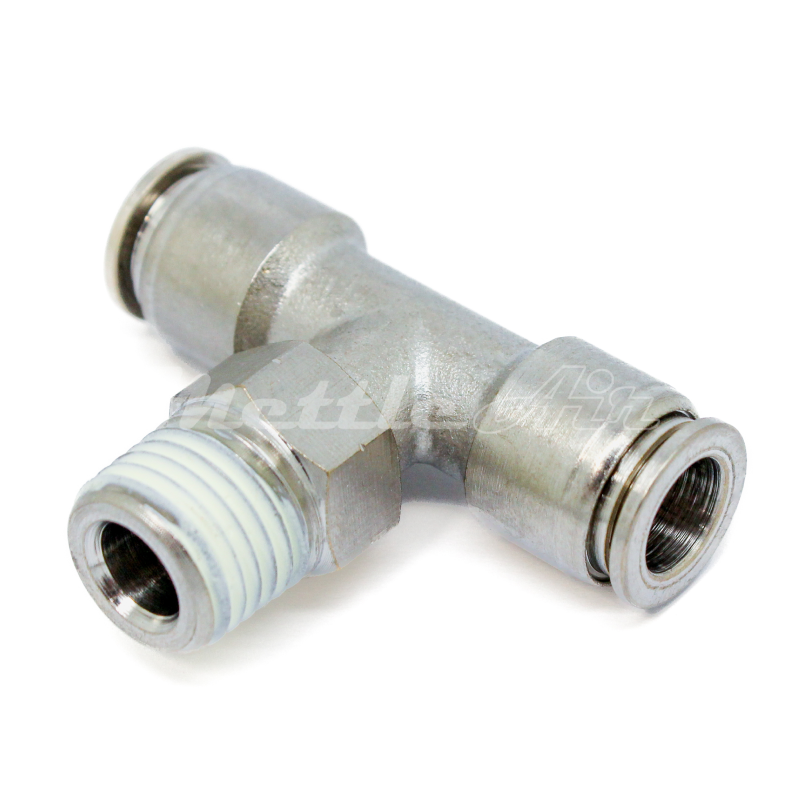

Description
Category: Nickel-Plated Brass Push to Connect Fittings
Type: Male Branch T Connector
SKU: BMTB8-02
Body Material: Nickel-Plated Brass
Tube OD: 8 mm
Thread: 1/4 BSPT (R)
Specifications
- Fluid Compatibility: Air
- Operating Pressure: 0 to 200 PSI
- Working Temperature Range: 32°F to 140°F (0°C to 60°C)
- Body Material: Nickel-Plated Brass
- O-Ring & Packing Material: NBR (Acrylonitrile Butadiene Rubber)
- Back Ring: POM (Polyoxymethylene)
- Lock Claws: Stainless Steel
- Collar: Nickel-Plated Brass
- Sleeve: Nickel-Plated Brass
Features
- Compatible Tubing: Suitable for Polyurethane and Nylon tubing
- Quick Connections: Enables fast, secure, and leak-free connections
- Reusable Design: Allows multiple connections and disconnections without compromising performance
- Pre-Coated Threads: Threads come pre-sealed for immediate use, no additional sealing required
- Versatile Installation: Hexagonal and Allen wrench-compatible design offers flexible tightening options
