METTLEAIR

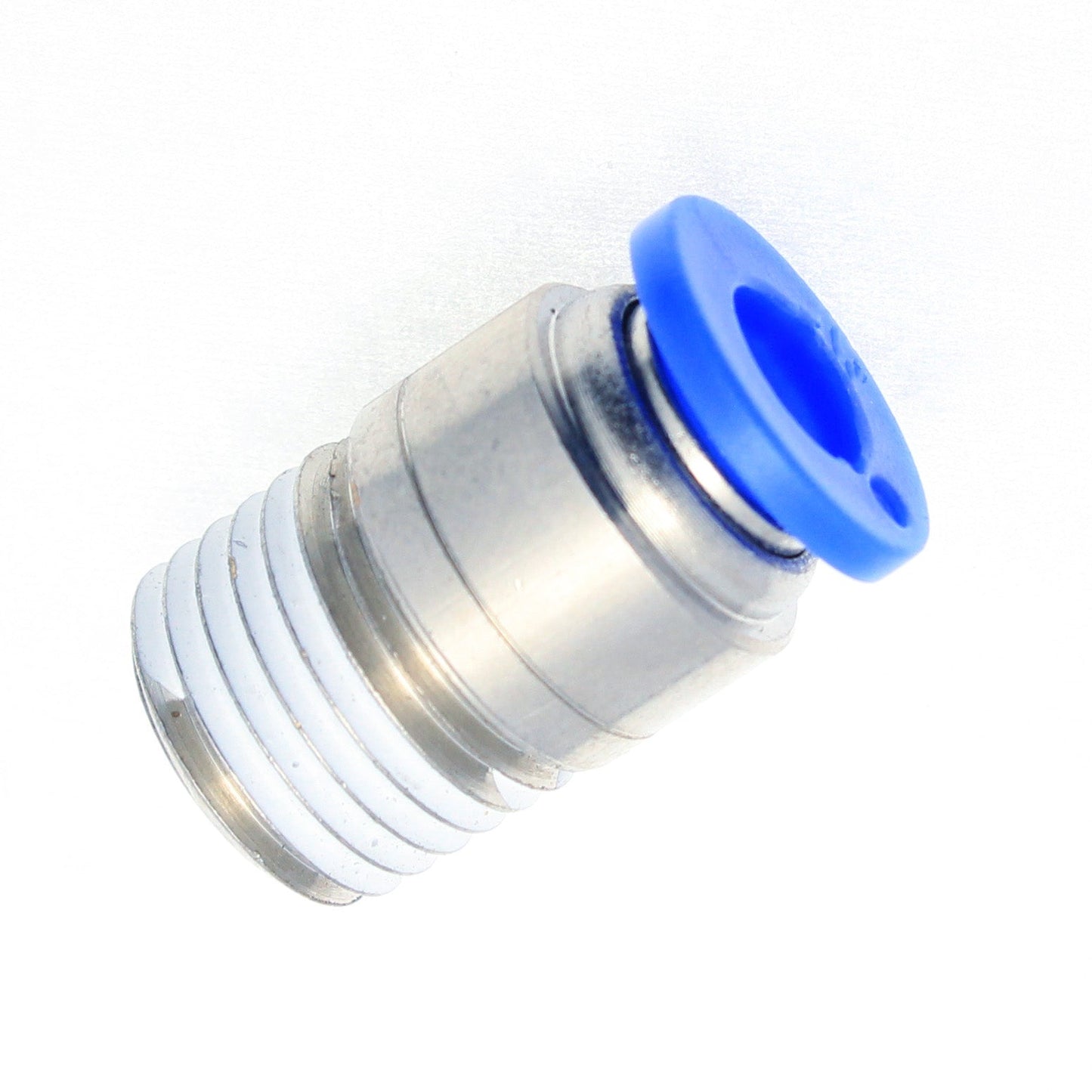

Push to Connect Straight Round Connector 1/4" OD - 1/4" NPT Male

Push to Connect Straight Round Connector 1/4" OD - 1/4" NPT Male

SKU: MTCR1/4-N02

$1.63 USD
$1.63 USD
Sale Sold out

Product Features

  • Type: Straight Male ROUND Connector
  • Model: MTCR 1/4-N02
  • Tubing: 1/4" OD
  • Thread: 1/4" NPT
Body Material: Composite/Nickel Plated Brass

Product Description



IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

Features

Designed for Polyurethane or Nylon tubing
Quick and Reliable connections
Reusable: Multiple connections/disconnections
Convenient elliptical sleeve configuration
Metallic body made of non-corrosive, non-contaminant Nickel-plated Brass
Pre-coated threads are ready to use without additional sealing
Interior Hexigonal/Allen wrench tightening



Specifications

Fluid Type: Air
Operating Pressure:0- 150 PSI
Working Temperature:32°F to 140°F (0°C to 60°C)
Metallic Body: Nickel-plated Brass
O-Ring: NBR (Acrylonitrile butadiene rubber)
Plastic Body: PBT (Polybutylene terephthalate)
Packing: NBR (Acrylonitrile butadiene rubber)
Back Ring: POM (Polyoxymethylene plastic)
Lock Claws: Stainless Steel
Collar: Zinc Alloy
Sleeve: Sleeve

This model has the advantage of round body (as opposed to hex style of regular straight male connectors) allows it to be used in applications where width of the fitting body is a concern. (IE: - mounting on valves or manifolds that have minimal space between ports). Installation and tightening of this fitting is done with an Allen/Hex Key(not included) inside of the fitting.

This precision product works great with other quality MettleAir accessories.
