METTLEAIR

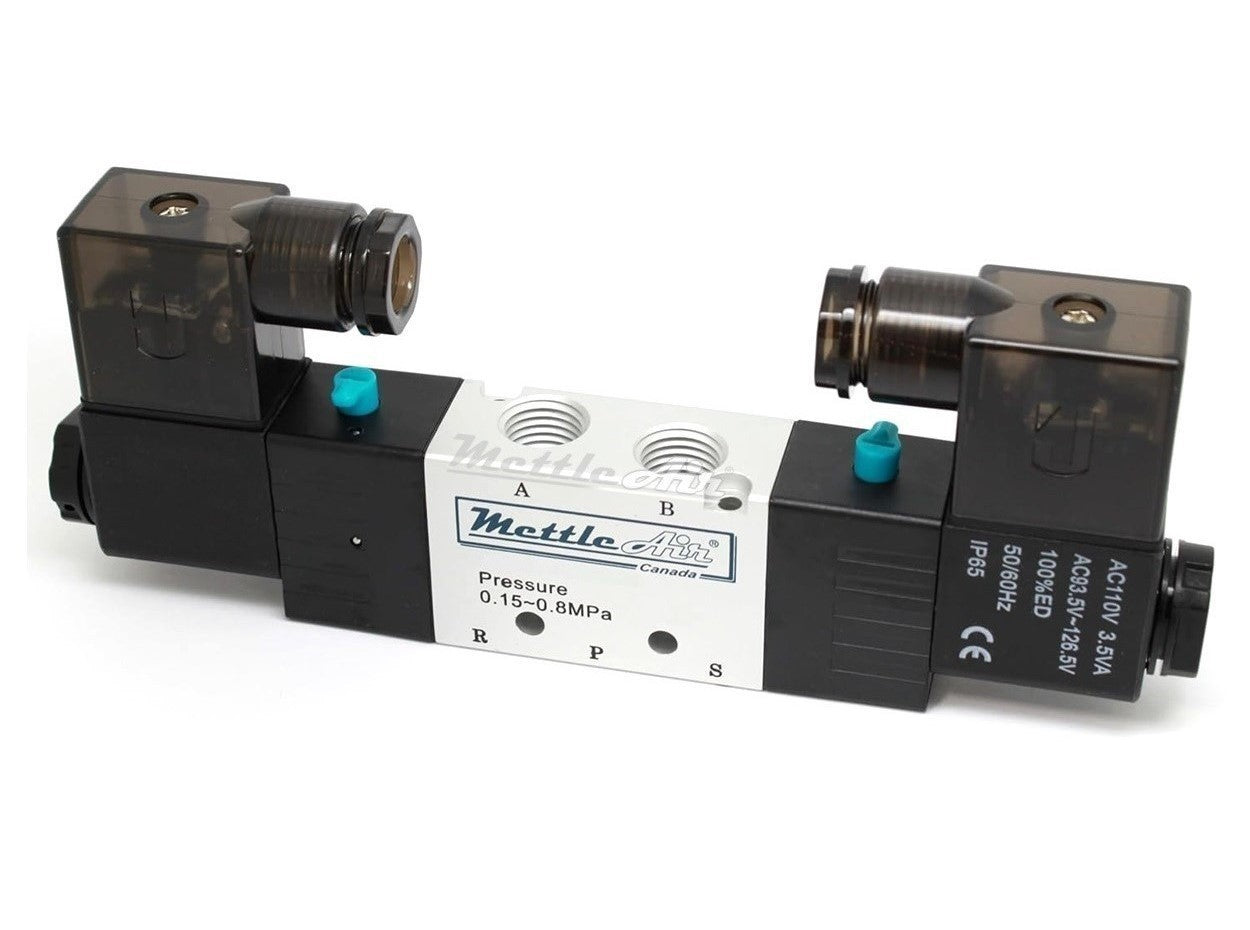

5 Ports 4 Way 3 Position CLOSED Center Valve 1/8" NPT DIN Connector Double Solenoid DC 12V

5 Ports 4 Way 3 Position CLOSED Center Valve 1/8" NPT DIN Connector Double Solenoid DC 12V

SKU: 4V130C-06-DC12

$73.05 USD
$73.05 USD
Sale Sold out

Product Features

  • Type: 5 Port 4 Way 3 Position Double Solenoid Valve with Manual Override (Center Closed)
  • Model: 4V130C-06-DC12
  • Coil: 12V DC, LED Light
  • Ports: 1/8" NPT
Exhaust: 1/8" NPT

Product Description



Flow Rate (Cv): 0.5

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Five way/Three position

Effective Section Area: 9mm² (CV=0.5)

Port Size: Air Inlet=Air Outlet=Exhast=1/8"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure:22-116 PSI

Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 2.8 VA/ DC: 2.8W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.
