METTLEAIR

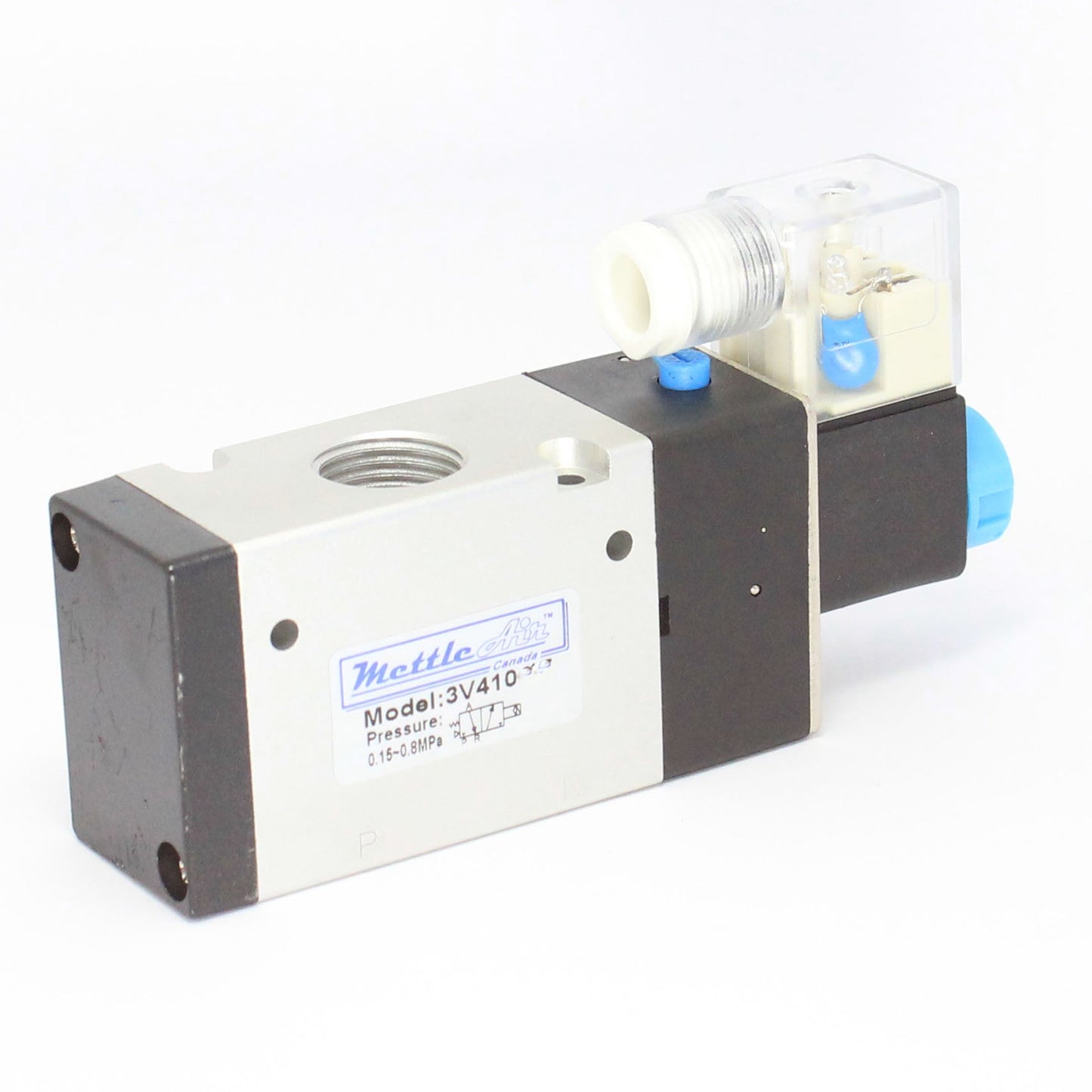

3 Way 2 Position NORMALLY CLOSED Valve 1/2" NPT DIN Connector Single Solenoid DC 12V

3 Way 2 Position NORMALLY CLOSED Valve 1/2" NPT DIN Connector Single Solenoid DC 12V

SKU: 3V410-15-DC12

$57.91 USD
$57.91 USD
Sale Sold out

Product Features

  • Type: 3 Way 2 Position Single Solenoid Valve with Manual Override NORMALLY CLOSED
  • Model: 3V410-15-DC12
  • Coil: 12V DC, LED Light
  • Ports: 1/2" NPT
Exhaust: 1/2" NPT

Product Description



Flow Rate (Cv): 2.79

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Three way/Two position

Effective Section Area: 50mm² (CV=2.79)

Port Size: Air Inlet=Air Outlet=Exhaust=1/2"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure:22-116 PSI

Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 5.5 VA/ DC: 4.8W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.
