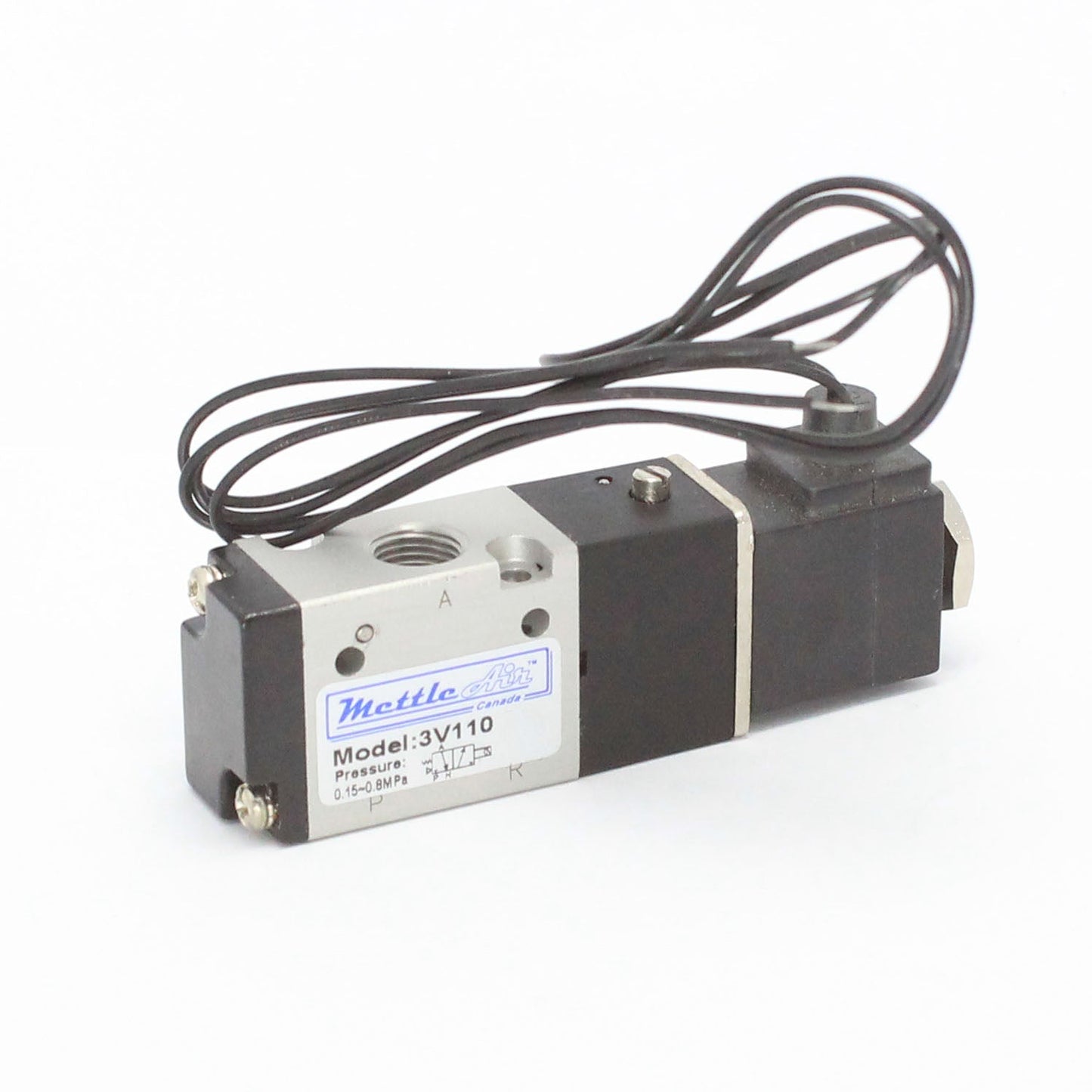

3 Way 2 Position NORMALLY CLOSED Valve 1/8" NPT Wire Leads Single Solenoid AC 24V

3 Way 2 Position NORMALLY CLOSED Valve 1/8" NPT Wire Leads Single Solenoid AC 24V

SKU: 3V110-06-AC24W

$30.53 USD
$30.53 USD
Sale Sold out

Product Features

  • Type: 3 Port 2 Position Single Solenoid Valve with Manual Override NORMALLY CLOSED
  • Model: 3V110-06-AC24W
  • Coil: 24V AC, Wired
  • Ports: 1/8" NPT
  • Exhaust: 1/8" NPT

Product Description

Flow Rate (Cv): 0.67

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Three way/Two position

Effective Section Area: 12mm² (CV=0.67)

Port Size: Air Inlet=Air Outlet=Exhaust=1/8"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure:22-116 PSI

Operating Temperature:5ºC to + 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 2.8 VA/ DC: 2.8W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.
