METTLEAIR

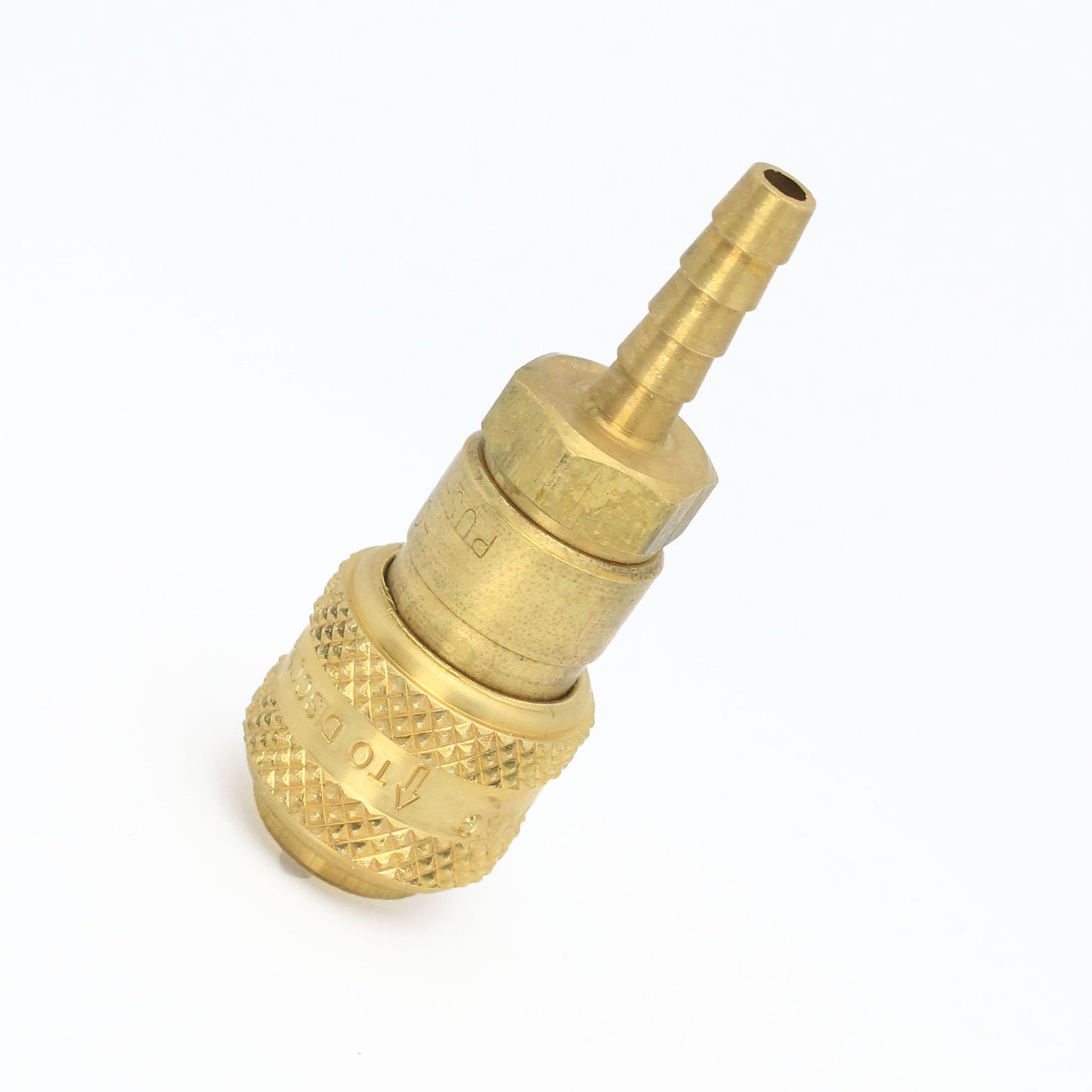

1/4" Body x 1/4" Hose ID Barb Automatic Industrial Interchange Coupler Brass

1/4" Body x 1/4" Hose ID Barb Automatic Industrial Interchange Coupler Brass

SKU: 2DS2-B

$9.21 USD
$12.28 USD $9.21 USD
Sale Sold out

Product Features

  • Model: 2DS2-B
  • Body Size: 1/4"
  • Hose ID: 1/4"
Material: Brass

Product Description



IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.
Remember to double check Parker, Foster, Dixon series compatibility prior to purchase

Quantity: 1 (One) piece

Overview: Industrial interchange couplings are widely used in pneumatic applications. A unique six ball locking mechanism provides quick and reliable connections. Dixon's couplers are well known and respected for their "longevity" and reliability. D-Series Couplers provide convenient automatic one handed connections. They have been performing reliably and safely for over 50 years. This amazing coupler is a perfect solution for connecting pressurized air lines.

Features:

Quality machined components
Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life
Nitrile (Buna-N) seals provide wide operating temperature range

Interchange Data:

Parker 30-Series Automatic Interchange
Foster 3, 4, 5 and 6 Series
Temperature range: -40F to 250F (-40C to +121C)

Functional Parameters:

Locking Ball Quantity: 6
Air Inclusion: N/A
Fluid Loss: N/A
Vacuum Rating: N/R
Flow ΔP=15 PSI: 27 CFM

Connected Pressure Rating for 1/4" Body Size

Brass Coupler/Steel Plug: 500 PSI/35 BAR (Max. Working), 16000 PSI/1100 BAR (Burst)
Brass Coupler/Plug: 300 PSI/20 BAR (Max. Working), 16000 PSI/1100 BAR (Burst)

Interchange Standards:

US Military: MIL-C-4109F
US Government: A-A-59439
International Standards: ISO6150B
ANSI/NFPA Standards T3.20.14-1990

LIMITATION OF LIABILITY

IN NO EVENT SHALL METTLEAIR BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE DAMAGES OF ANY KIND, OR DAMAGES CAUSED BY DELAY IN PERFORMANCE, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR REVENUE, COST OF SUBSTITUTES, ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER FOR BREACH OF WARRANTY OR OTHER BREACH OF CONTRACT, NEGLIGENCE OR OTHER TORT.   METTLEAIR€™S MAXIMUM LIABILITY FOR ANY CLAIMS ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER IN CONTRACT OR TORT OR OTHERWISE, SHALL NOT EXCEED THE INVOICED PURCHASE PRICE OF THE PRODUCT(S) GIVING RISE TO THE CLAIM.

It is agreed and acknowledged that the provisions of these Terms allocate the risks between  MettleAir and the Buyer in a fair and equitable manner, MettleAir€™s pricing reflects this allocation of risk, and but for this allocation and limitation of liability, MettleAir would not have agreed to sell the Products to Buyer.

In jurisdictions that limit the scope of, or preclude limitations or exclusions of, remedies or damages or of liability such as liability for gross negligence or willful misconduct or do not allow implied warranties to be excluded, the limitation or exclusion of warranties, remedies, damages or liability set forth herein are intended to apply to the maximum extent permitted by applicable law.

CALIFORNIA PROPOSITION 65 WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING THIS PRODUCT IS NOT D.O.T. APPROVED

This product is not D.O.T. (Department of Transportation) approved and should not be used for automotive applications.
